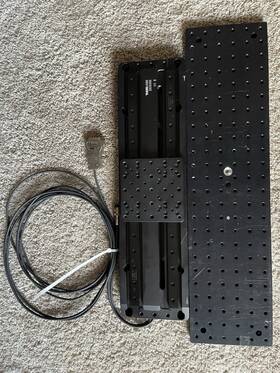

THORLABS DDS300 Travel Drive Optical Breadboard 300MM MB624

( Brand: Thorlabs ), ( Manufacturer Part Number: DDS300 ), ( Type: Linear Positioner/stage ), ( Country/region Of Manufacture: Germany )

Review THORLABS 300mm Travel Direct Drive Stage Optical Breadboard

Thorlabs DDS300 300mm Travel Drive MB624 Optical Breadboard - A Versatile Platform for Optical Experiments

The Thorlabs DDS300 300mm Travel Drive MB624 Optical Breadboard is a comprehensive, robust solution designed for a wide range of optical experiments. This premium product, a blend of precision engineering and innovative design, offers a spacious 300mm travel for maximum versatility.

The heart of this breadboard is the DDS300 drive, which provides smooth, accurate, and repeatable linear motion. The drive features a quiet operation, making it ideal for sensitive optical measurements. The travel drive is controlled by a user-friendly software interface, allowing for easy adjustments and precise positioning.

The MB624 optical breadboard is built on a sturdy aluminum frame, ensuring rigidity and stability during rigorous experiments. The breadboard features a dense array of 100 drilled holes, evenly spaced to accommodate standard optical components. The holes are threaded M8, providing a secure mounting solution for your equipment.

One of the standout features of this product is its modular design. The breadboard can be easily expanded with additional MB624 or other compatible breadboards, allowing for the creation of custom, large-scale optical setups.

The Thorlabs DDS300 300mm Travel Drive MB624 Optical Breadboard is an essential tool for researchers, engineers, and educators working in the field of optics. Its combination of precision, versatility, and expandability makes it a valuable asset in any laboratory setting. Whether you're working on complex research projects or teaching fundamental concepts, this breadboard is designed to support your optical experiments with unparalleled quality and reliability.

The Thorlabs DDS300 300mm Travel Drive MB624 Optical Breadboard is a versatile and high-quality system designed for a variety of optical experimentation. Here are some pros and cons to consider before making a purchase:

1. Large 300mm travel distance: This extensive travel length allows for a wide range of optical alignment and experimentation possibilities.

2. Compact design: The optical breadboard and drive system are integrated into a single unit, making it easy to set up and transport.

3. Precision motion: The DDS300 offers sub-micron positioning accuracy, ideal for sensitive optical experiments.

4. Compatibility: This system can be easily integrated with various optical components due to its standard size mounting holes.

5. Built-in encoder: The built-in encoder provides real-time feedback on the position of the stage, enhancing the system's control and precision.

1. Cost: As a high-end optical system, the Thorlabs DDS300 may be priced higher than some other solutions on the market.

2. Power requirements: The system requires a stable power supply, which may not be readily available in some portable or field research settings.

3. Potential vibration issues: Due to the precision nature of the system, any vibrations or external disturbances could potentially affect the accuracy of the stage movement.

4. Limited payload capacity: With a maximum recommended load of 20 lbs (9 kg), this system may not be suitable for heavy optical components.

In conclusion, the Thorlabs DDS300 300mm Travel Drive MB624 Optical Breadboard is an excellent choice for researchers, engineers, and scientists requiring a compact, precision-motion optical stage for their experiments. However, it may not be the best option for those working on a tight budget or needing to support heavier optical components. Consider your specific requirements and budget before making a final decision. If you can accommodate the costs and potential limitations, this system is a powerful and versatile tool for your optical research.

Details:

An innovative, low-profile design with integrated, brush less linear motors eliminates the external housings that create mechanical clash points and impede access to moving platform. The direct-drive technology removes the need for a lead screw, eliminating backlash. Internal flexible ducting ensures cables cannot become trapped as the mechanism moves. Thorlabs' DDS300 Low-Profile, Direct-Drive Translation Stage provides 300mm of travel with a minimum incremental movement 100 NM and maximum speed 400mm /s.

This stage is ideal for applications that require high speeds and positioning accuracy, including automated alignment, surface inspection, mapping, probing. Twin, precision-grooved linear bearings provide superior rigidity and linearity with excellent on-axis accuracy 7.5 m.

part #: dds300 prices

• $495.00-$1299.99

specifications linactuat:

• brand: Thorlabs
• mpn: Dds300
• type: Linear Positioner/stage
• country/region of manufacture: Germany

returns linactuat:

• policy: No Returns

shipping linactuat:

• transit: 5-11 Days
• cost: $23.05
• type: Calculated
• class: Expedited
• service: USPS Priority Mail
• carrier: USPS

payments linactuat:

• wallet: Google-pay
• other
• credit card: Diners-club

seller linactuat:

• city: Littleton, Colorado
• rating: 100.0%
• # reviews: 6

offer linactuat:

• options: Ship-to-home
• availability: In Stock
• quantity: 1
• sold: 0
• started: June 19, 2025
• best offers: True

general linactuat:

• condition: Used
• Industrial Automation Motion Controls > Rotary Linear Motion > XY Rotary Positioning Stages
